4g Maggi chicken cubes counting and filling, cup sealing, pressing capping machine

Short Description:

This is a line for a customer in Sri Lanka,for 4g Maggie cubes counting and filling cups sealing and press capping machine, 25pcs cubes in each cup, and the capacity of the line can get 25 cups per minute.


Detail

Product Tags

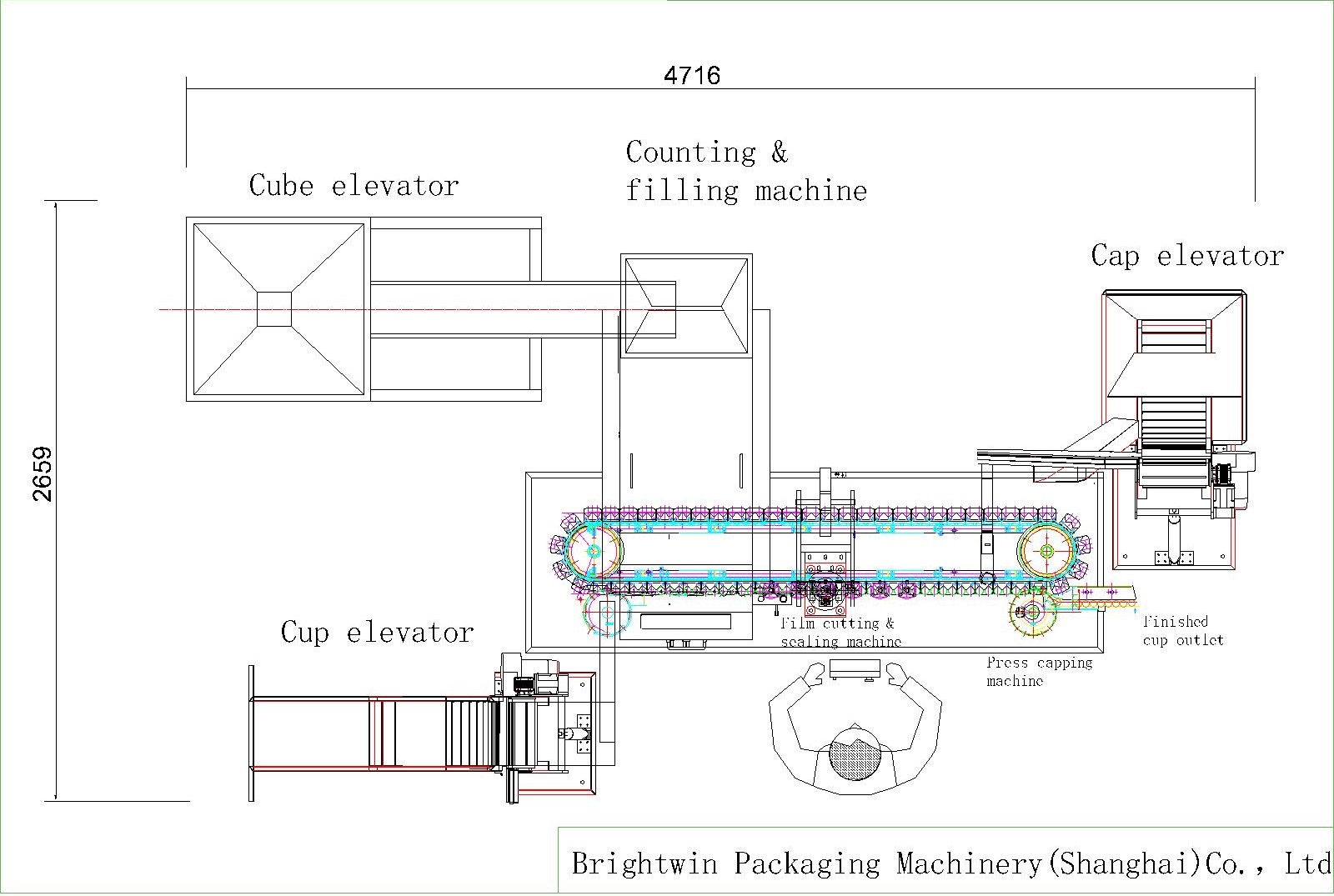

Layout of the line

https://www.brightwingroup.com/4g-maggi-chicken-cubes-counting-and-filling-cup-sealing-pressing-capping-machine-for-nestle.html

This is a line for a customer in Sri Lanka,for 4g Maggie cubes counting and filling cups sealing and press capping machine, 25pcs cubes in each cup, and the capacity of the line can get 25 cups per minute. It is ideal for grain products' counting filling capping, according to the package, it can connect with other machine to be a whole packaging line.

It can be used on other grain products like:  buttons, shower cubes, screws, capsules, tablets, pills etc.

The machine can finish all the movement automatically without labor, just need workers to place cubes cups caps and film periodicitily. It has extremely high stability and productivity, which can save lost of labor costs and time costs as much as possiblcan. Many factories are replacing labor with mechanization as much as possible.

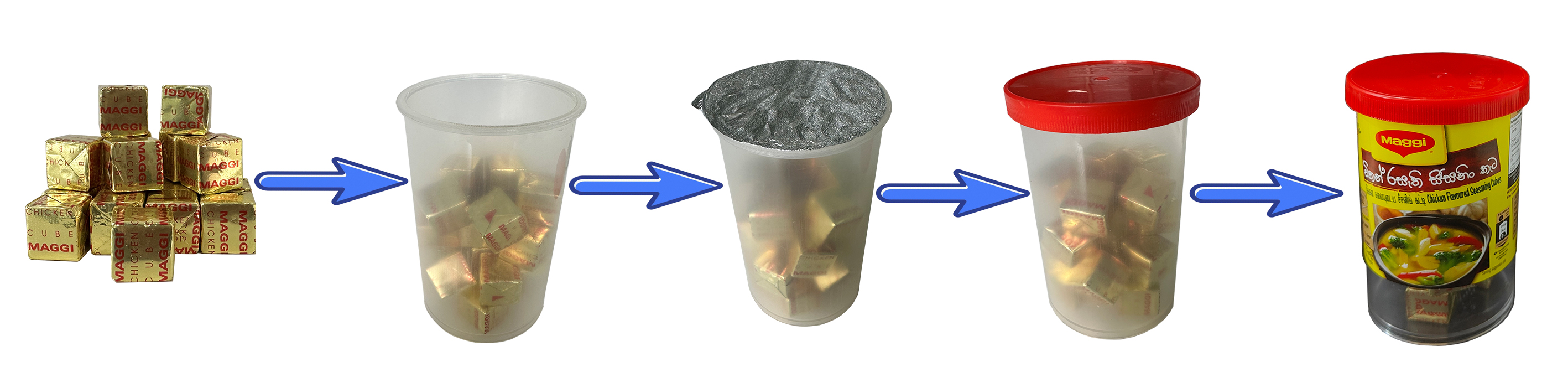

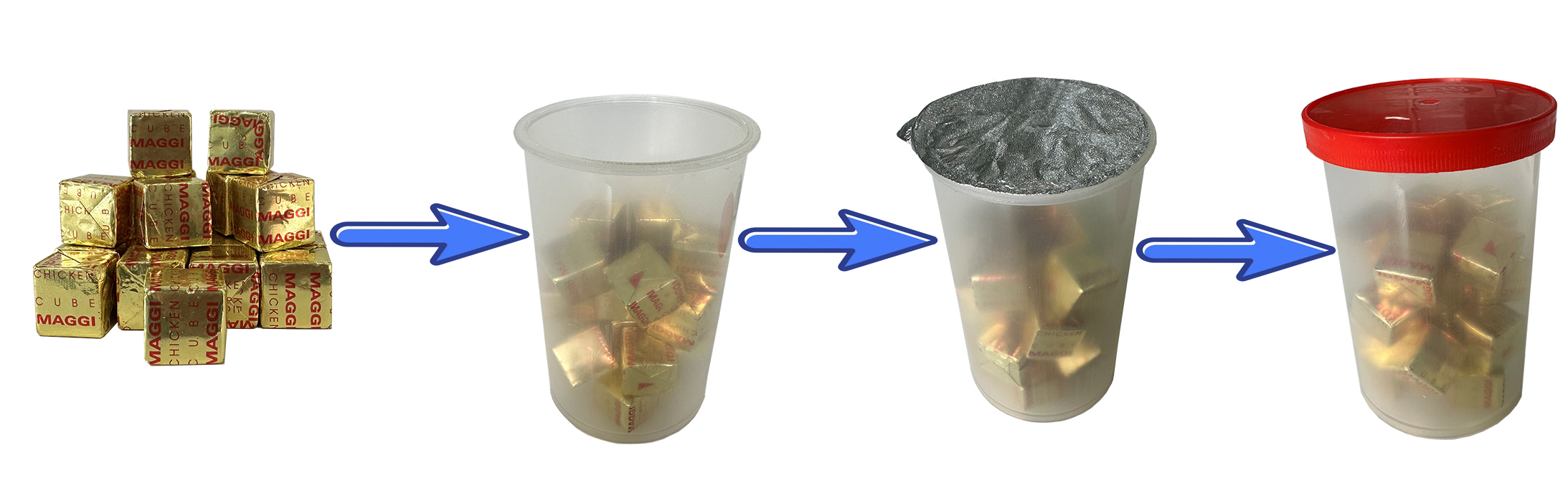

Process of the line

b6f52b85-04b0-4fa3-994e-21af269515ae

Video

Parameter

Item

Parameter

Cube size

4g

Cubes number in each cup

25cubes

Capacity

25cups/minute

Air pressure

0.6-0.8MPa

Power

5KW

Voltage

380V/220V
