A Malaysian client’s 180pcs/min 10g bilis stock cube pressing wrapping box packing machine production line
This is a A Malaysian client’s bilis stock cube pressing wrapping box packing machine production line: 180pcs cubes per minute.

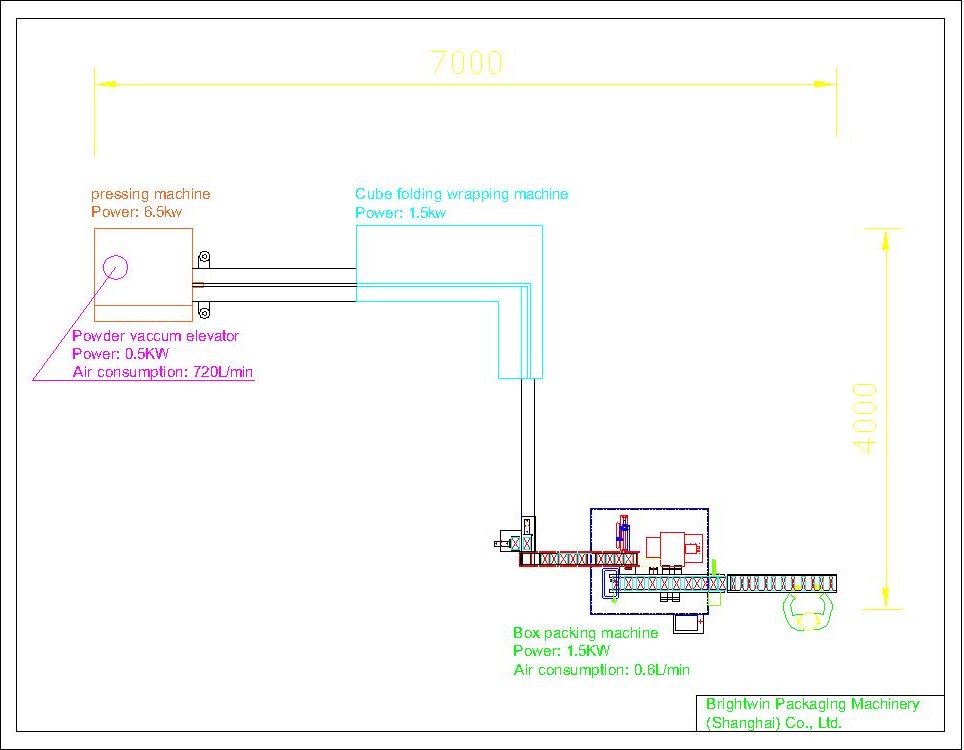

The line contains one chicken bouillon flavor cube pressing machine, one chicken bouillon flavor cube paper film wrapping machine, one chicken bouillon flavor cube box packing machine.

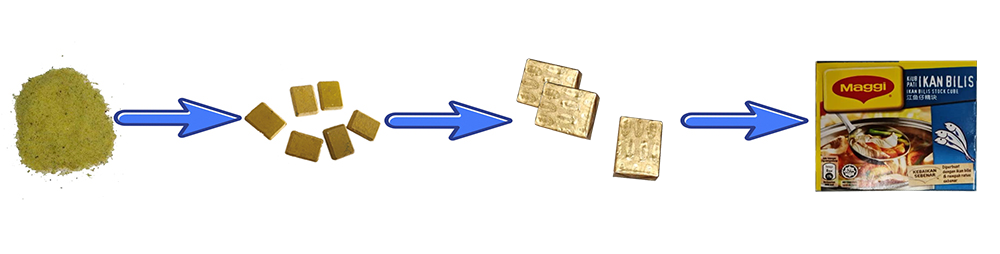

It can finish pressing powder to cubes, wrapping cubes with paper film and folding, packing wrapped cubes into boxes(6 cubes in each box).
The chicken bouillon flavor cube pressing machine has one outlet,the pressed cubes will be transported to the paper film wrapping machine ,also when the cubes has wrapped ,they will also be transported by a conveyor belt to the packaging machine to complete the final work.
|
Item |
Parameter |
|
Cube size |
10g |
|
Capacity of the line |
50-60boxs/minute |
|
Cubes number in each box |
6cubes |
|
Air pressure |
0.6-0.8MPa |
|
Power |
11KW |
|
Voltage |
380V/220V |
