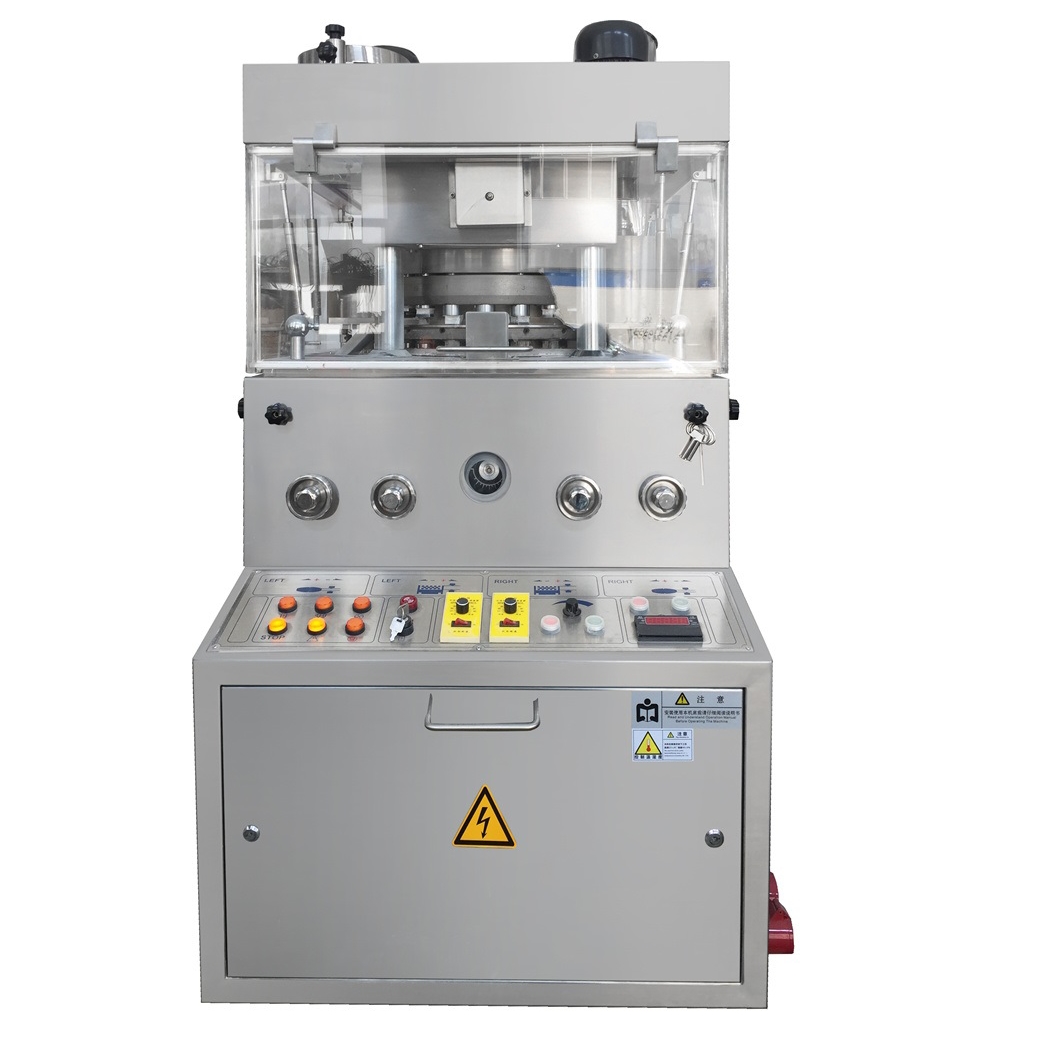

automatic pressing machine bean Cake pressing machine bean Cake maker making machine
This machine is designed for pressing all kinds of granular materials into a round plate,
and is suitable for batch production of the basic equipment.
Rotary speed, the depth of the filling and tablet thickness can be adjusted.
The mechanical buffer device can avoid the overload and cause damage to the machine.
The machine can be another match suction powder box, through the suckers to absorb dust,
avoid bonding jams, and recycle raw materials to use.
The pressing machine will come with a vacuum cleaner to clean up excess powder.
ONE: MAIN TECHNICAL DATA
|
Quantity of Punch&die(Set) |
19 |
|
Max. Pressure (KN) |
100 |
|
Max length (mm) |
40 |
|
Max. Depth of Filling (mm) |
25 |
|
Cube size(mm) |
To be confirmed |
|
Rotate Speed (r/min) |
20 |
|
Production Capacity (pc/h) |
Can be adjust |
|
Electric power source(V/Hz) |
380/50 |
|
Power(KW) |
4 |
|
Outside Measurement (mm) |
600*960*1950 |
|
Weight(Kilogram) |
2300 |
TWO: MAIN APPLIANCE CONFIGURATION CHECKLIST
|
Name |
Type |
Manufacturer |
|
Electric motor |
4kw-6 poles |
Shanghai Dedong |
|
Transducer |
P/N 132F0026 |
Danmark Danfoss |
|
contactor |
3TB4322-OX 220V |
Siemens |
|
Contactor |
3TB4022-OX 220V |
Siemens |
|
Relay |
MK2P-1/AC220V |
Omron |
|
Relay |
MK2P-1/DC24V |
Omron |
|
Thermorelay |
JR36B-20 |
Siemens |
|
Magnetic Ballast for Fluorescent Lamp |
BPL9W220VB2SC |
Phillips |
|
Little Triphase Breaker |
5SJ63 |
Siemens |
|
Emergency Stop Button |
AR22V2R-11R |
Fuji |
|
Key Switch |
AR22JR-3A11A |
Fuji |
|
Indicator Light |
DR22E3L-E4G |
Fuji |
|
Travel Switch |
LX19-001 |
Shanghai Huatong |
|
Fan |
FK3321.100 |
Shanghai Leipu Electric |
|
Control Button |
AR22PR-210B |
Shanghai Huatong |
|
Register |
In accordance with appliance eg:40:1×30 |
Shanghai Handwheel Revolution |
|
Rattle Ware |
DR22BS-220V |
Fuji |
|
Switch |
HGS-25-24 |
Mingwei |
|
Screw Fuse Porcelain Base |
RL1-15 |
Shanghai Huatong |
THREE: MAIN MATERIAL CONFIGURATION CHECKLIST
|
Name |
Material |
Outside heat treatment hardness |
|
Rotating floor |
1QT500-7 made of cast iron （standard configuration） 245# hard searing-iron on the surface( elective） 3SS30 stainless steel central disc（electiv） |
/ |
|
Materials of spigot shaft and transmission shaft |
GB/T3077-1999 stated 40Cr medium carbon steel structural iron |
/ |
|
Turbine of main transmission |
GB/T1176-1987 stated ZQSn10-1 tin bronze |
Outside heat treatment hardness HRC45-48 |
|
Worm’s turbine |
GB/T3077-1999stated 40Cr medium carbon steel structure |
Outside heat treatment hardness HRC45-48 |
|
Clamping roller |
GB/T1222-1984 stated GCr15 high carbon ferro-chrome |
Heat treatment hardness in surface of excircle of clanying roller is HRC60-62 |
|
Guideway |
GB/T1222-1984 stated GCr15 high carbon ferro-chrome |
Steel guideway and the place which drill drift touches the heat treatment hardness is HRC58-62。
|
|
Batch charger |
Tin bronze ZQSn6-6-3, searing-iron on the surface |
/ |
|
Middle board |
More than GB9439-1998 stated cast iron of HT200 |
/ |
|
Main material |
More than GB9439-1998 stated cast iron of HT200 |
/ |
|
Chute |
Stainless steel (OCr18Ni9)
|
/ |
|
Faceplate mask |
Stainless steel (OCr18Ni9)
|
/ |
|
Clanying rollermask |
Stainless steel (OCr18Ni9)
|
/ |
