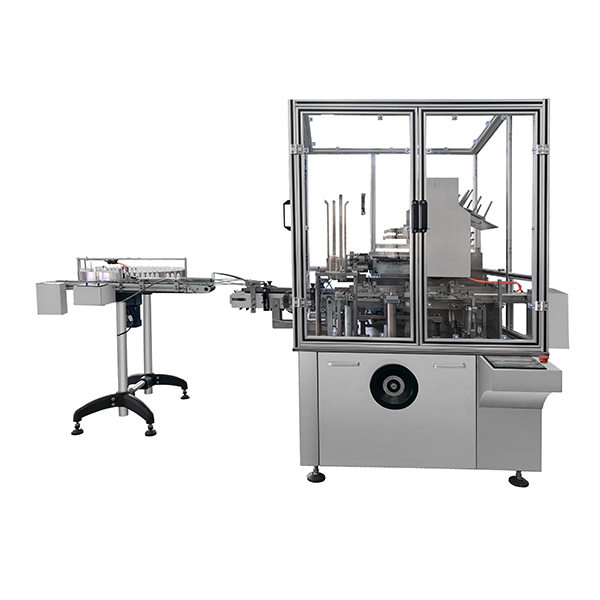

BRIGHTWIN Automatic tablet cubes carton box packing machine

Short Description:

We are the first one in China who made this boxing machine for cubes; many factories are copying us, but can never go beyond us.
This boxing machine also can be used to boxing bottles, medicine, biscuit, cosmetics and any other kind of thing in boxes. It can finish automatically folding leaflet, opening box, pushing product into box, printing batch number, and sealing etc.


Detail

video

Customer feedback

transaction history

certificate

Product Tags

Introduction

https://www.brightwingroup.com/boxing-machine-2.html

Overview
The boxing machine can finish automatically folding leaflet, opening box, pushing product into box, printing batch number, and sealing etc. It is applicable for packing various solid regular objects like eyedrop, medicine board, cosmetics, and cookies etc.

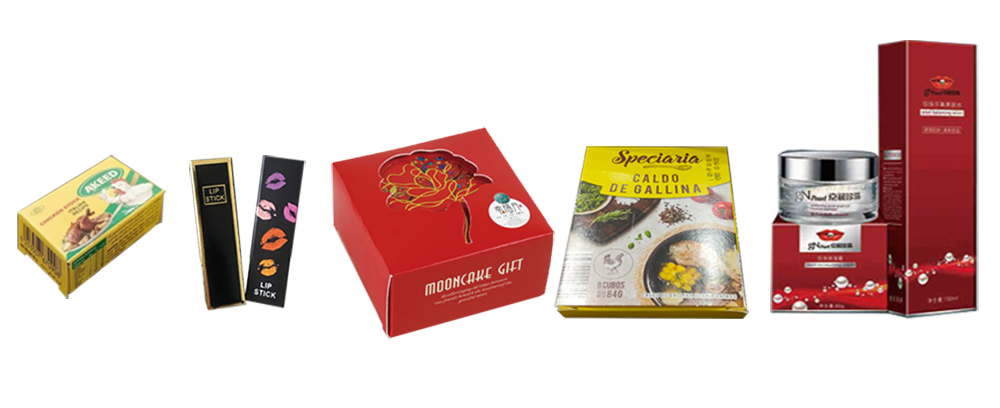

Packed products

https://www.brightwingroup.com/boxing-machine-2.html

Feature

1. Different sizes of cartons can share one machine by adjusting, easy operation.
2. The leaflet can be 1-4 folders.
3. With detection and rejection function if no product or cartons.
4. Printing batch numbers synchronously, can print 2-4 lines
5. Shows malfunction, alarms and stops automatically, and shows how to operate and maintain it.
6. Shows speed and counts automatically.
7. Can be connected to other machines to form automatic packing line

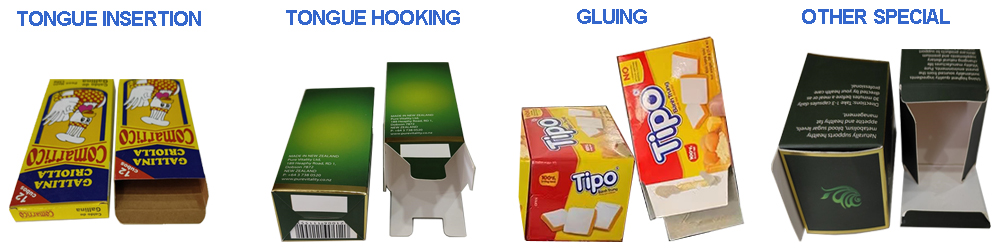

Sealing type

https://www.brightwingroup.com/boxing-machine-2.html

Parameter

Capacity 50-100 boxes/min
Box material Carton paper
Carton paper quality 200-400g/m³
AIR pressure 0.5-0.7 Mpa
Power 2.5KW
Machine dimension 2200-1200-1800mm
Voltage AC380/220V, 50/60HZ(customized)

Optional function

https://www.brightwingroup.com/boxing-machine-2.html

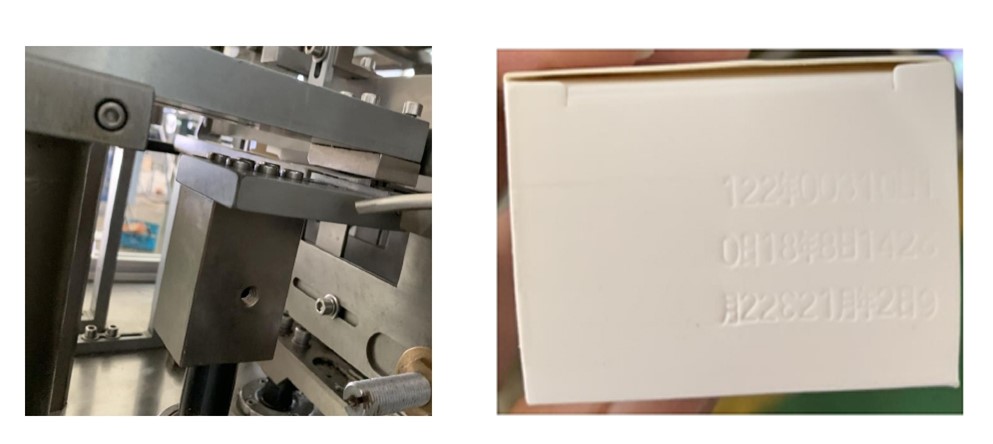

Steel seal printing

The max number of printing row is 3: normaly one row producing date, one row expiry date, and one row special code.

If need other printing type, we can design for you. Leave message to us!
