BRIGHTWIN automatic Condiment Aromaste Halal Beef Powder Seasoning boxing machine with video
The boxing machine can finish automatically folding leaflet, opening box, pushing product into box, printing batch number, and sealing etc. It is applicable for packing various solid regular objects like bouillon cubes, bread, cakes,bags, eye-drop, medicine board, cosmetics, and cookies etc.
Feature:
- Different sizes of cartons can share one machine by adjusting, easy operation.
- With detection and rejection function if no product or cartons.
- Shows malfunction, alarms and stops automatically, and shows how to operate and maintain it.
- Shows speed and counts automatically.
- Can be connected to other machines to form automatic packing line

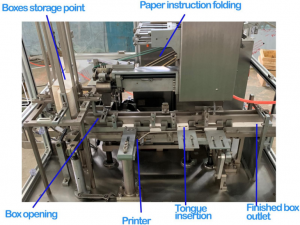

Cubicles for product:
Boxes storage Point:
Technical data:
|
Item |
Parameter |
Remarks |
|
|
Speed |
30-80boxes/min |
Depends on products |
|
|
Requirement for box |
Material requirement |
250-300/ m2(white paperboard) 300—400g/ m2(gray paperboard)【depends on box size】 |
Surface must be smooth, can be sucked |
|
Size range |
Min: 30X20X10mm Max: 200X170X80mm |
----------------- |
|
|
Compressed air |
pressure |
≥0.6MPa |
------------------ |
|
Air consumption |
About 100-120L/min |
----------------- |
|
|
Power supply |
220V(can be customized) 50Hz |
------------------ |
|
|
Main motor power |
1.5kw |
------------------ |
|
|
Dimension LxWxH |
3500X1350X1650mm |
------------------ |
|
|
weight |
About 1300kg |
------------------- | |
