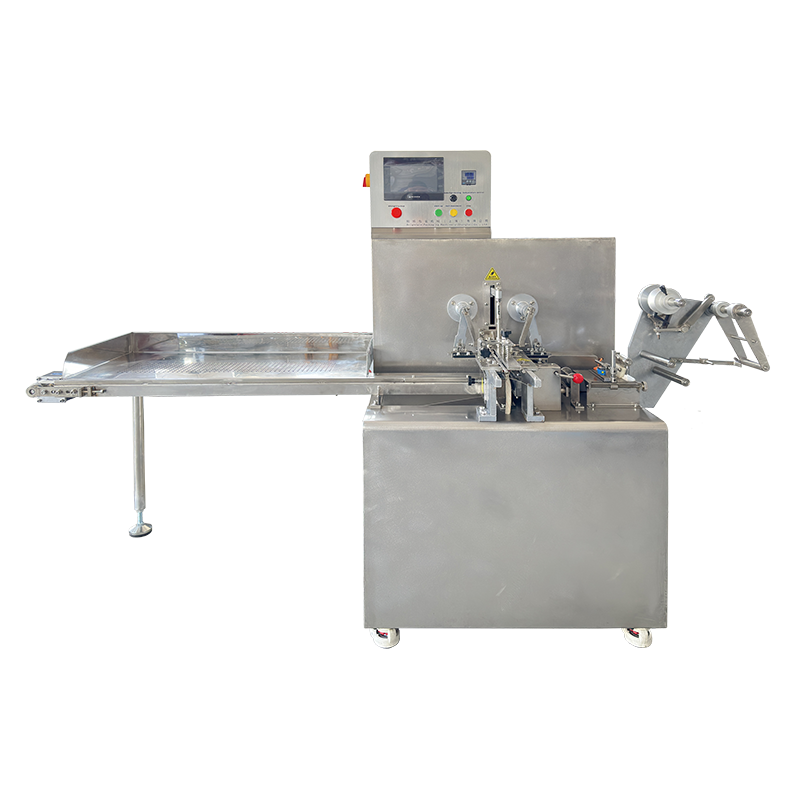

Chicken cube Envelope type wrapping machine

Short Description:

This chickn cube envelope type wrapping machine is used to pack chicken cubes in envelop type, it is also suitable for other products like bouillon cubes, sugar cubes, and green bean cake etc.

We are The only one in China who can make the whole line for cubes, which includes pressing machine, wrapping machine, boxing machine and conveyor. Many companies wanted to copy our conveyor, but they failed, because they can not copy our core technology; the cubes would be blocked without this core technology.

Send email to us Download as PDF

Detail

VIDEO

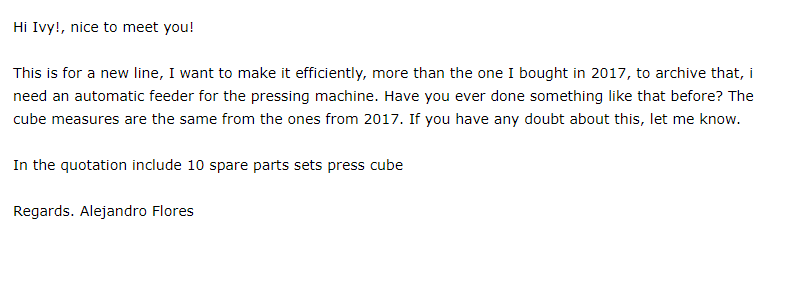

CUSTOMER FEEDBACK

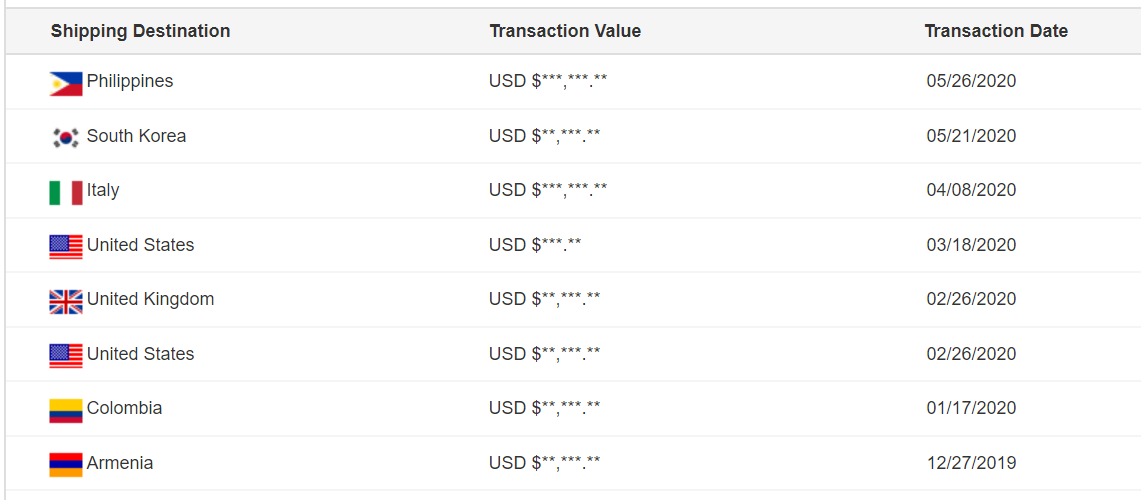

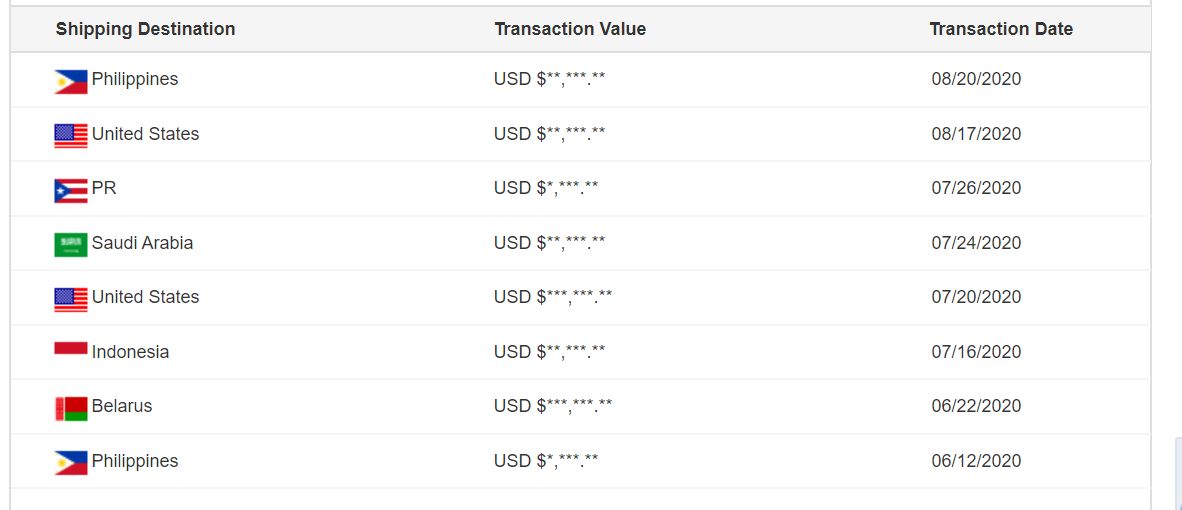

TRANSACTION HISTORY

CERTIFICATE

Product Tags

Introduction

https://www.brightwingroup.com/envelope-type-wrapping-machine.html

Overview of chicken cube envelope type wrapping machine
This chicken cube envelope type wrapping machine is used to pack chicken cubes as envelope type wrapping package. It is also suitable for other solid square and retangle products with flat bottom such as bouillon cube, enveloper-wrapping chocolate, and candy etc.
It is back sealing machine, high accuracy, stable operate and low noises.

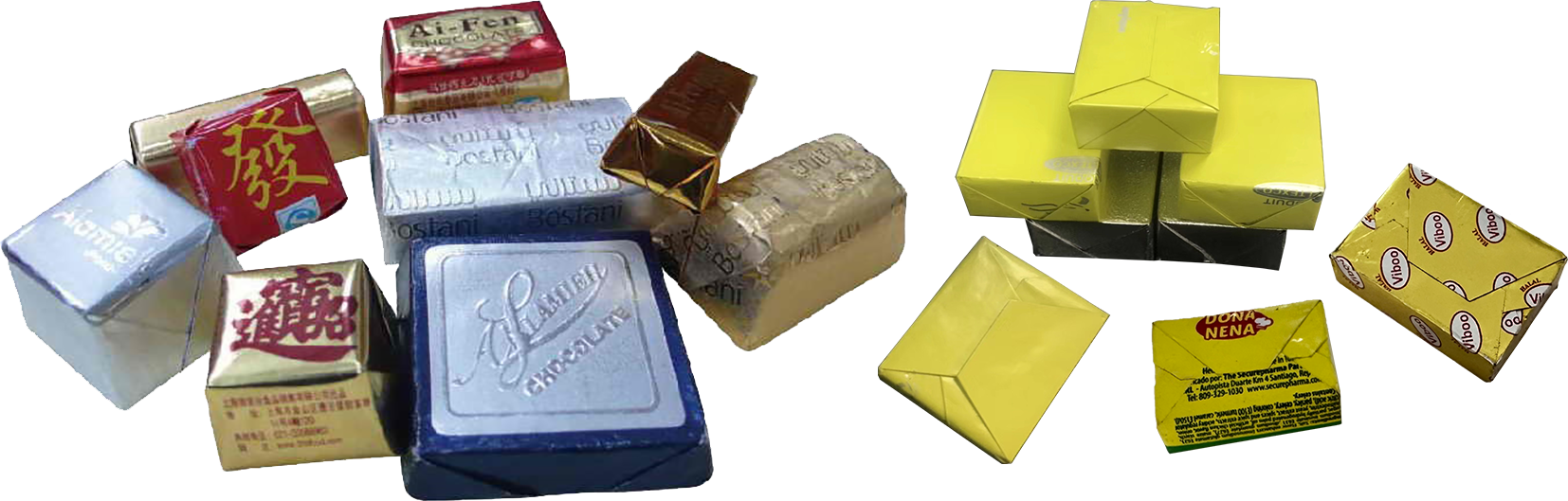

Wrapped products

Wrapped product samples of chicken cube envelope type wrapping machine

Principle

Principle of chicken cube envelope type wrapping machine

The chicken cube envelope type wrapping machine wraps the products fully automatically by charging the products into a inlet conveyor, and the product transported along the conveyor close to the machine. The product is pushed upward by a lift head when it comes right below a wrapping former. At this time wrapping material prepared before hand is fed by a paper feeder via paper feeding channel, and is cut to a predetermined size. A piece of wrapping material cut and the product pass simultaneously through the wrapping former, and contoured pack or four cornered pack except bottom fold is made. Then the product will be clamped in a fixed position, when the bottom fold is done by 3 folding plate. And the next, the product is pushed to a heat sealing plate to be heat sealed. Thus, the product is completely wrapped and is discharged one by one.

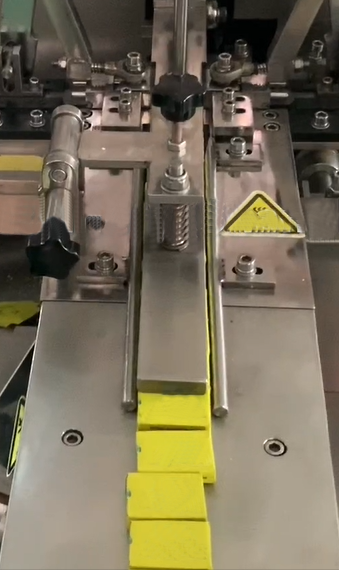

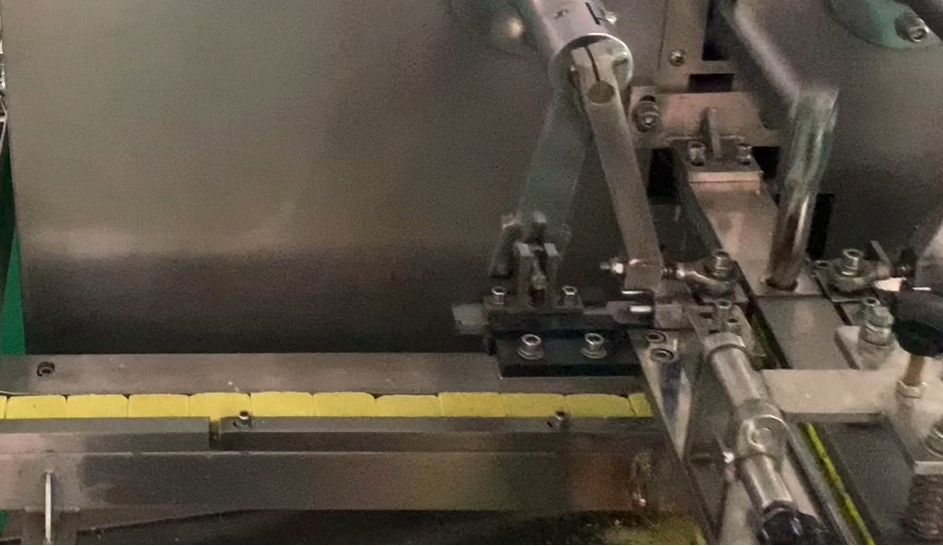

Working steps

The working steps of chicken cube envelope type wrapping machine

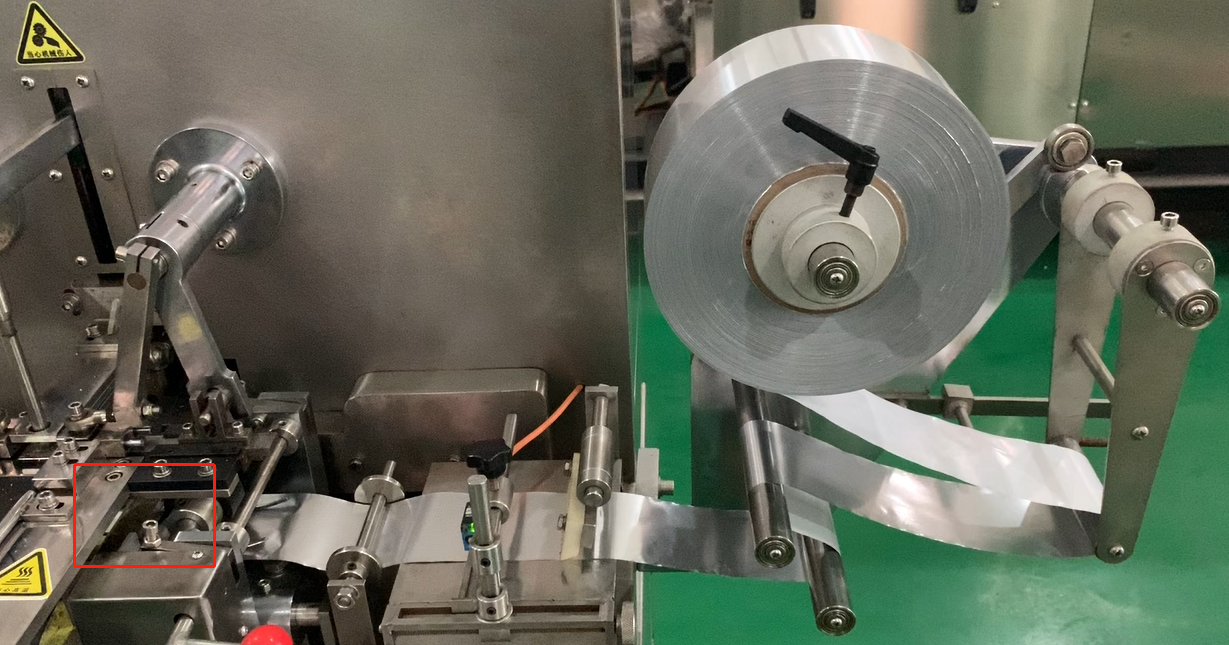

Step 1: film feeding and cutting

Step 2: chicken cubes feeding

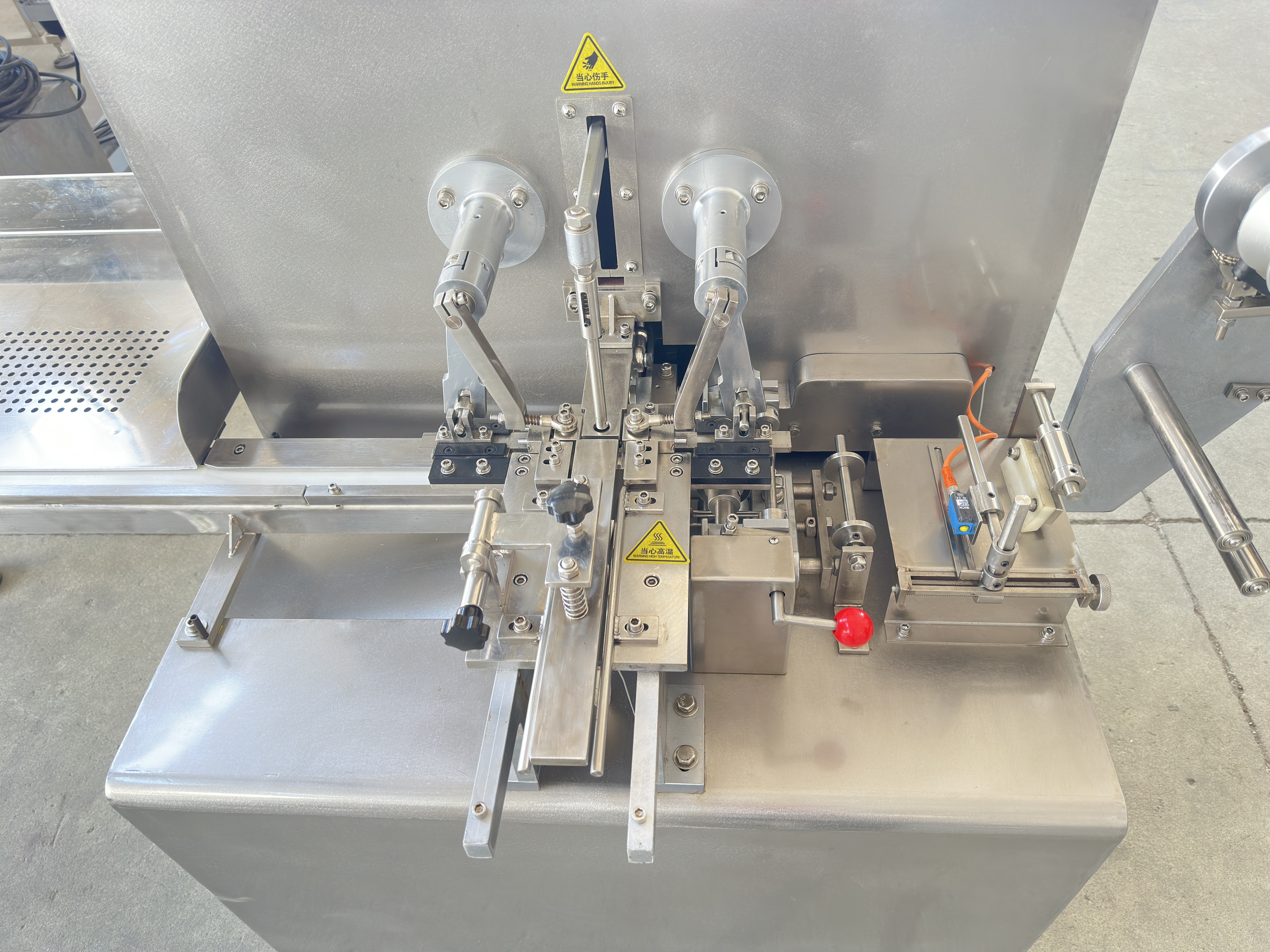

Step 3: chicken cubes are wrapped by film

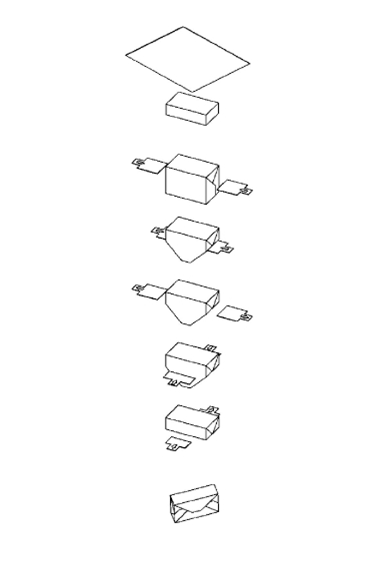

The packing theory of the chicken cube Envelope type wrapping machine

Step 4: Wrapped chicken cubes are transported out

Feature

Features of chicken cube envelope type wrapping machine

1. PLC & microcomputer control.

2. Photo-electrical positioning, servo motor control paper feeding.

3. Its envelope type back sealing, nice and flat.

4. Automatic folding and sealing.

5. Easy operation, high efficiency, labor saving, easy maintenance.

6. Suitable for solid squareness, rectangle products with flat bottom such as bouillon cube/stock cube/chocolate/candy, etc.

7.Meet GMP requirement.

Parameter

Parameters of chicken cube envelope type wrapping machine

Packing type	back sealing
Capacity	60-150pieces/min
Shape of product	Square/retangle
Product size	4g 8g 10g 12g(customized)
Packing material	Wax paper, Aluminum thin, art paper, wafer
Machine simension	2380-1100-1550mm
Power	1.65KW
Weight	600KG
Voltage	single phase 220V
Control system	PLC & Touch screen
Packing film	roll film
