Doypack pouch liquid packing machine
Machine General Description
It is one of the best Doypack Packing Machine
Form-Fill-Seal doy pack pouch , good for regular doy pack pouch, pouch with reclosable zipper, spout & cap, hanging hole, different shape. Full servo technology machine ,fast in packing, stable in operating, Durable machine with reasonable price.
Flexible to fill and pack various product such as liquid, viscous liquid, sauce and paste etc. Hundreds machines already served in Food, beverage, cosmetics, personal care, household, chemicals and pharmaceutical industry.
Characteristics
1)PLC control, English and man-machine interface, operating easy and simple maintain.
2)Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3)Versatile machine could make doy pack bag with zipper or spout , unique bag shape could be designed according to require.
4)Independent digital through temperature controller for vertical and horizontal sealing, intuitive and accurate.
5)Easy and fast adjustment of change over, the machine has strength extensibility, could fill two or even more products into one bag by added filling device .
6)Smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production to get Friendly working environment.
Technical Specifications
| Model | BW-180S |
| Measuring range | 0-2500 ml are customized |
| Measuring method | Electronic scales |
| Bag size | Length 90-280mm width80-180mm |
| Capacity(max) | 40-50 bags/min |
| Control style | PLC+ English touch screen |
| Power | 8KW |
| Power supply | AC 380V 50Hz |
| Air pressure | 0.6Mpa |
| Weight | N.W.:2150Kg |
| Dimensions(mm) | 5600(L)×1210(W)×1800(H) |
| Bag shape | Stand up pouch |

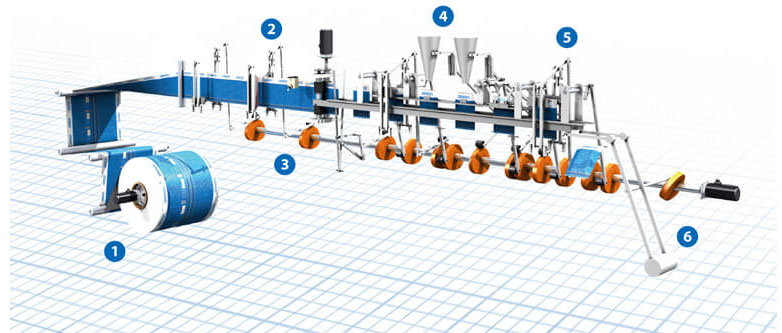

Flowchart Of Machine
Flowchart Of Machine
| No. | Work steps | Functions |
| 1 | Set up film | Compressed air control loading and uninstall roll film, very easy |
| 2 | Store film | Storing 30 meters film, no need stop machine when exchanging new filmSo this construction make machine work continuously |
| 3 | Punching hole | Punching holes in film for making bags with hang hole |
| 4 | Pull film | Make film move in one trace |
| 5 | Make bags | Make film into a certain shapes |
| 6 | sealing | Sealing moulds with high temperature, make film seal together |
| 7 | Flatten bags | Flatten bags, ensure bags in good position |
| 8 | Pull bags | Servo motor system pull bags and get to accurate position |
| 9 | Separate bags | Cutting bags and separate them one by one |
| 10 | open bag | Vacuum open bags |
| 11 | Flushing bag | High pressure compressed air make sure bags full open |
| 12 | filling | Different filling heads for different products, and a related feeding systems |
| 13 | Add spout | Choose or not |
| 14 | Welding spout | Choose or not |
| 15 | Top sealing | Sealing bags after filling |
| 16 | Cold sealing | Make sure sealing line good looking |
| 17 | output | Conveyor belt bring products one by one |
|
Realistic pictures |
|
|

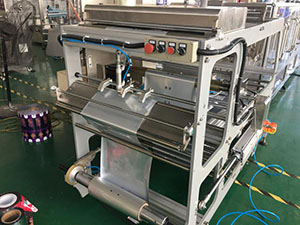

Film feeder |

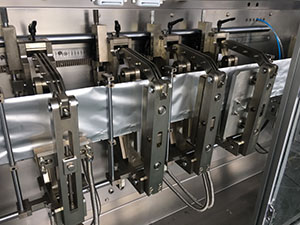

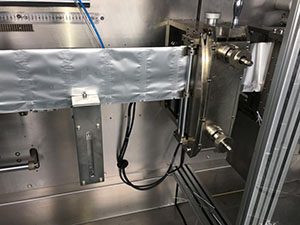

sealing |
 |
 |
|

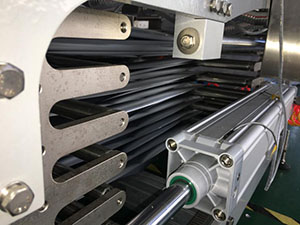

Film store stack |

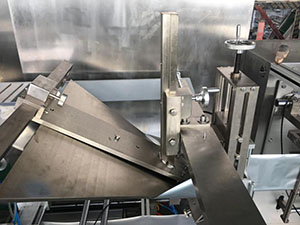

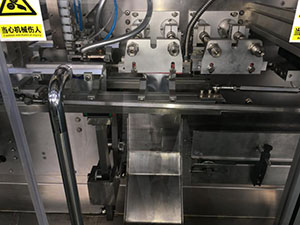

Bottom former |
 |
 |
|

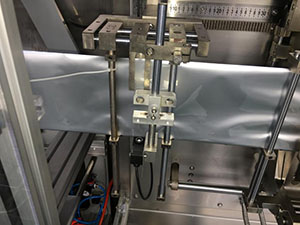

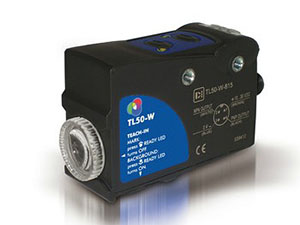

Photocell |
Round corner cut |
 |
 |
|

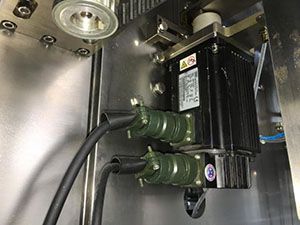

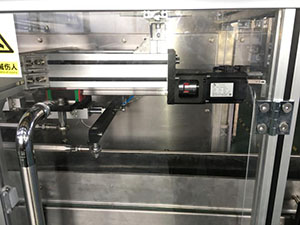

Servo motor for feeding film |
Filling station |
 |
 |
| Sealing mould |
Shelf motor |
 |
 |
|

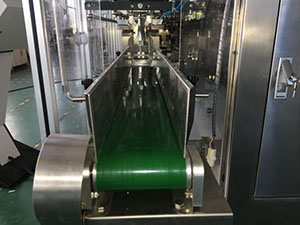

output |

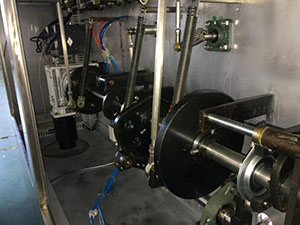

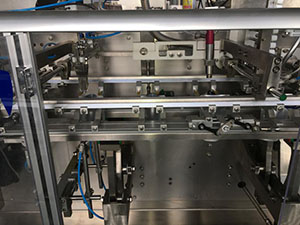

Drive part in back |
 |
 |
 |
 |
 |
 |

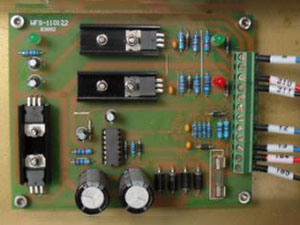

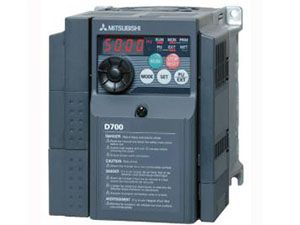

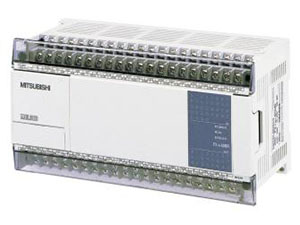

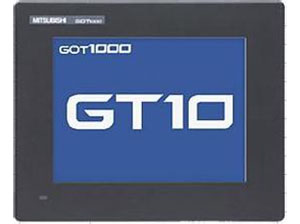

| Touch screen | ＰＬＣ | frequency | Signal braking board |
 |
 |
 |
 |

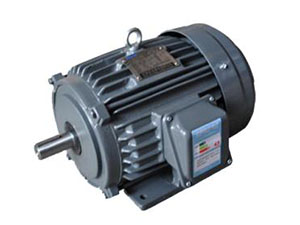

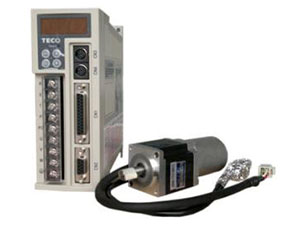

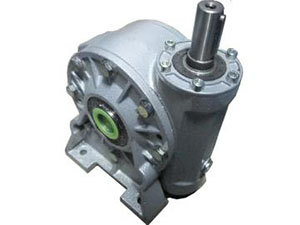

| Servo motor | Main motor | Main retarder | Air brake |
 |
 |
 |
 |

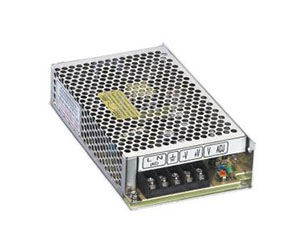

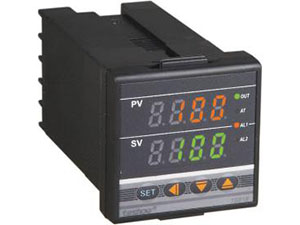

| Switch power | Fiber optic amplifier | Coder | Temperature controller |
 |
 |
 |
 |

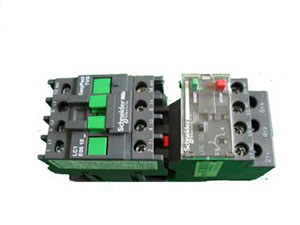

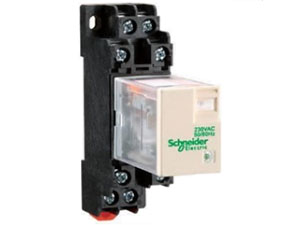

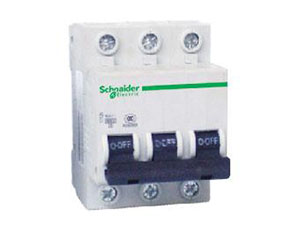

| Relay group | Solid state relay | AC contactor | Switch group |
Pneumatic components
 |
|
|
 |
|
Vacuum control |
Solenoid valve |

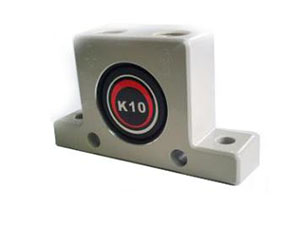

Pneumaticvibrator |
Pneumatic board |
|
|
|
|
|
|
Three-way joint |
joint |
Valve |

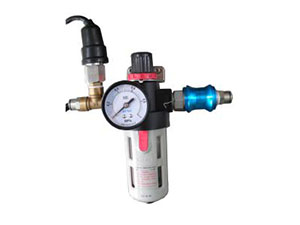

filter |
|
14 |
|

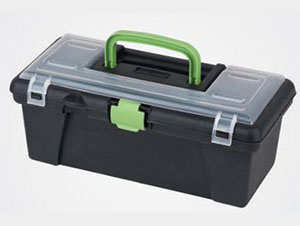

Tool Box |
1 piece |
|
