A Nigerian customer’s 5g chicken bouillon cube pressing wrapping counting and bag packing machine line
This is a chicken cubes automatic bag packing line: 800-1000pcs cubes per minute.

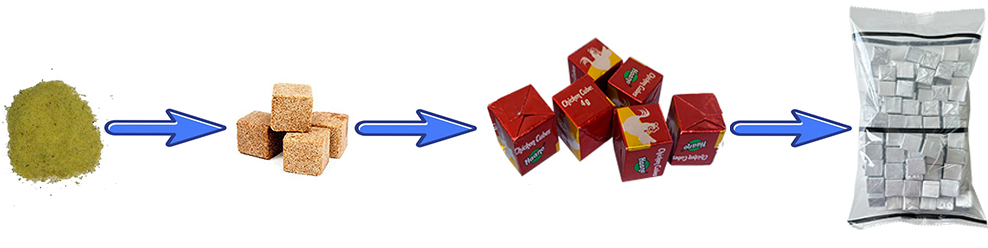

The line is from chicken cube pressing to chicken cubes wrapping with film, finally chicken cube arranging counting and packing into bags.

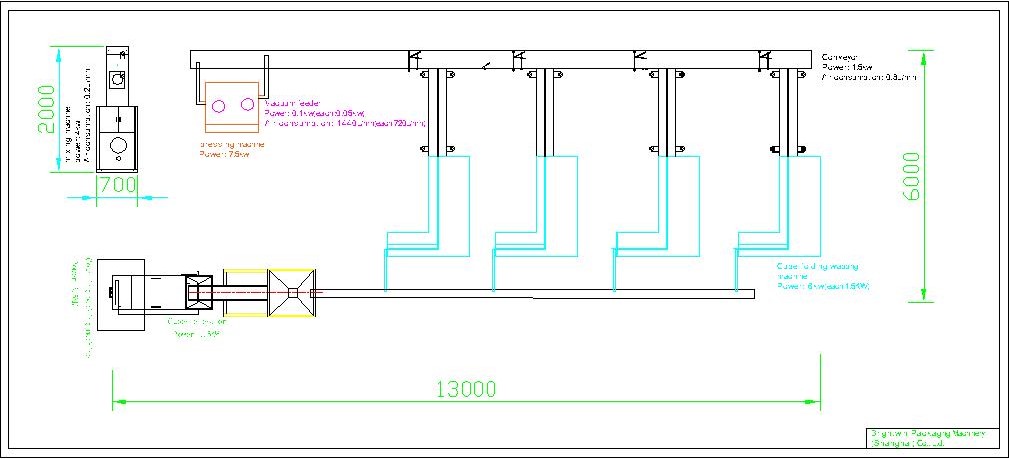

The line contains one chicken cubes pressing machine, four chicken cube wrapping machine, one chicken cube counting and filling machine, one chicken cube packing machine.
The chicken bouillon cube pressing machine has two exits, which are collected by the conveyors and connected to the four chicken bouillon cube wrapping machines, finally connected to the chicken bouillon cube counting and filling machine and the chicken cube bag packing machine.
The line can finish all the movement automatically, just need workers to feed powder to the chicken bouillon cube pressing machine, and change film roll for the chicken bouillon cube wrapping machines and the chicken bouillon cube bag packing machine periodical.
The cubes number in each bag is adjustable, it can pack any number as you need. This customer has two type: 25 cubes in each bag, and 100 cubes in each bag.
|
Item |
Parameter |
|
Cube size |
4g |
|
Capacity of the line |
800-1000cubs/minute |
|
Cubes number in each bag |
25pcs & 100pcs |
|
Air pressure |
0.6-0.8MPa |
|
Power |
20KW |
|
Voltage |
380V/220V |
