A Turkish customer’s 540pcs/min shrimp bouillon cube press wrapping tray packing and 3D wrapping machine line

Short Description:

This is a shrimp bouillon cubes carton tray packing line: 540pcs cubes per minute, for a customer from Turkey whose factory is located in Guinea.

The line is from shrimp bouillon cube pressing to shrimp bouillon cube wrapping with film, finally shrimp bouillon cube packing into carton tray and wrapping with transparent film.

There are 48 shrimp bouillon cubes in each carton tray, arrangement is 4*4*3.


Detail

Product Tags

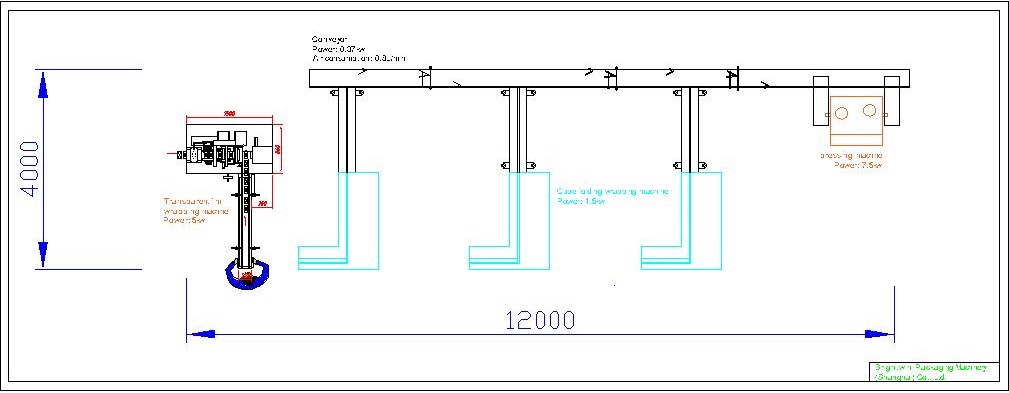

Layout of the line

https://www.brightwingroup.com/turkish-customers-540pcsmin-shrimp-bouillon-cube-press-wrapping-tray-packing-and-3d-wrapping-machine-line.html

This is a shrimp bouillon cubes carton tray packing line: 540pcs cubes per minute.

The line is from shrimp bouillon cube pressing to shrimp bouillon cubes wrapping with film, finally shrimp bouillon cube carton trays wrapping and sealing with transparent film.

The line contains one shrimp bouillon cube pressing machine, three shrimp bouillon cube wrapping machine, one shrimp bouillon cube carton trays packing and 3D wrapping machine.

The shrimp bouillon cube pressing machine has two exits, which are collected by the conveyors and connected to the three shrimp bouillon cube wrapping machines, then workers collect wrapping shrimp bouillon cubes together and place them into carton trays by hand, finally the shrimp bouillon carton tray packing and 3D wrapping machine will wrap and seal the transparent film arount the carton trays.

There are 48 shrimp bouillon cubes in each carton tray, arrangement is 4*4*3.

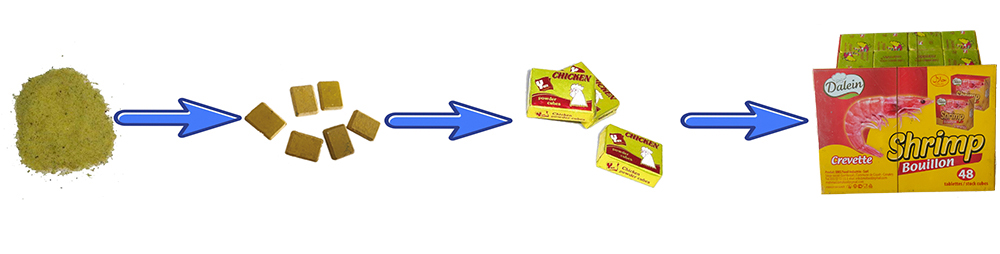

Process of the line

https://www.brightwingroup.com/turkish-customers-540pcsmin-shrimp-bouillon-cube-press-wrapping-tray-packing-and-3d-wrapping-machine-line.html

Video

Parameter

Item

Parameter

Cube size

10g

Capacity of the line

540cubes/minute

Paking method

carton tray

Air pressure

0.6-0.8MPa

Power

18KW

Voltage

380V/220V
